DT Swiss g 540 DB 29" 24mm rim

This wide rim takes hard hits even over bumpy sections. Enjoy the long rides!

The sleeved aluminium Gravel rim is the ideal choice for riding over gravel, roots or small obstacles on unpaved paths. The robust all-round rim with its inner width of 24 mm and its wide knobby tires up to 53 mm is suitable for various purposes and provides great comfort.

Technical specifications

• Manufacturer weight: 565g.
• Material: aluminium.
• Rim joint: Sleeve joint.
• Tyre interface: hooked / crotchet tubeless tc.
• Brake interface: disc.

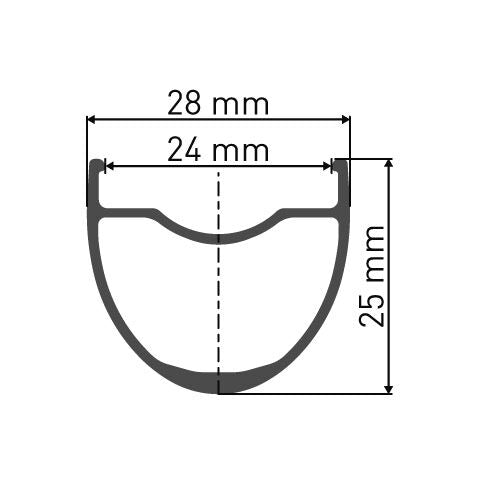

Dimensions

• Rim diameter: 29’ / 700C.
• Erd reference diameter: 592 mm.
• Inner width: 24 mm.
• Outer width: 28 mm.
• Profile height: 25 mm.

Holes

• Number of holes: 24/28/32.
• Rim spoke holes: Non eyelet PHR.
• Valve hole: Presta.

hole drill 24 hole

hole drill 28 hole

hole drill 32 hole
